http://dan.drown.org/stm32duino/package_STM32duino_index.json - STM32 boards

Attiny85 bootloader, digispark, arduino

AVR studio download

Attiny boards for Arduino - https://raw.githubusercontent.com/damellis/attiny/ide-1.6.x-boards-manager/package_damellis_attiny_index.json

AVR arduino Eclipse plugin

ISP adruino nano

Optiboot arduino

Optiboot howto

RFID RC522 library

Arduino Bulgarian projects

Robot construction

Интересни проекти и робот

Arduino first robbot

Arduino projects

Arduino Python

avr-gcc in Gentoo

Arduino Nano

Teensy

FT232RL

GPIO

Watchdog

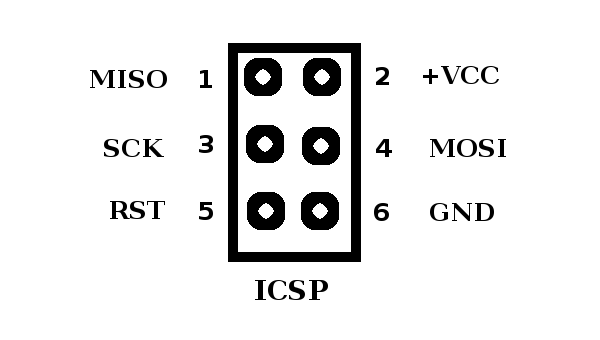

ISP Programer - ArduinoISP sketch

Name  Mega   Uno      MiniPro

MOSI    51      D11         D11
MISO    50      D12         D12
SCK      52      D13         D13

RST       53      D10         RST

RTC DS1302

Да не се свъзва VCC пина!

2 - RST

3 - DAT

4 - CLK

GND - GND

SD card

Name  Mega   Uno      MiniPro

MOSI    51      D11         D11
MISO    50      D12         D12
SCK      52      D13         D13

RST       53      D10         RST

GND    GND     GND        GND

3.3V    3.3V     3.3V        3.3V

OLED 0.96 to Arduino Nano

GND - GND

VCC - VCC

D0 - A5

D1 - A4

RES - D4

DC  - VCC

CS - N.C.

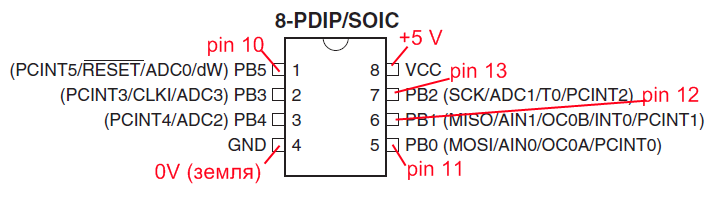

AttinyXX to Arduino Nano programmer

CAN connect

CAN_INT    - D2

CAN_SCK   - D13

CAN_SI      - D11

CAN_SO     - D12

CAN_CS     - D10

CAN_GND  - GND

CAN_VCC   - VCC
